22D PowerFlex 40P Allen-Bradley | 22D-E4P2N104

Description

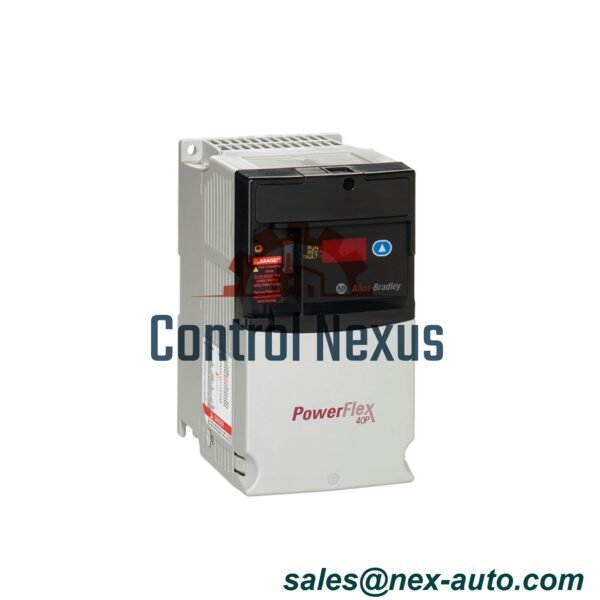

Allen-Bradley 22D-E4P2N104 Adjustable Frequency Drive is part of the PowerFlex 40P series. It controls motor speed and torque in PLC systems.

Key Specifications:

Model: 22D-E4P2N104

Brand: Allen-Bradley

Series: PowerFlex 40P

Input Voltage: 600 Volts AC (3-phase)

Frequency: 48–63 Hz, ±10% tolerance

Output Current: 4.2 Amps

Power: 3 HP (2.2 kW)

Enclosure: Panel Mount, Open Type (IP20)

No CE Filter

Frame Size: B

Features:

Removable Metal Oxide Varistor (MOV) for surge and ground fault protection

Integral DC brake transistor for dynamic braking

Overload protection: 150% for 1 minute, 200% for 3 seconds

Bus overvoltage trip at 1005V DC, undervoltage at 487V DC

300% instantaneous current fault limit

Sensorless Vector and Volt/Hz motor control

Sinusoidal PWM output with 2 to 16 kHz carrier frequency

Speed control: ±1% open loop with slip compensation, ±0.05% closed loop with encoder

Inputs: 5 programmable digital, 2 dedicated digital, plus analog inputs (0–10V, 4–20mA)

Double-channel incremental encoder support

Human Interface Module (HIM) with display and reset button

RS-485 communication port for easy PC programming

Operating temperature: 14°F to 122°F (-10°C to 50°C)

Storage temperature: -40°F to 185°F (-40°C to 85°C)

Max installation height: 1000 meters

Download PDF file here:PowerFlex 4 and 40 AC Drives
