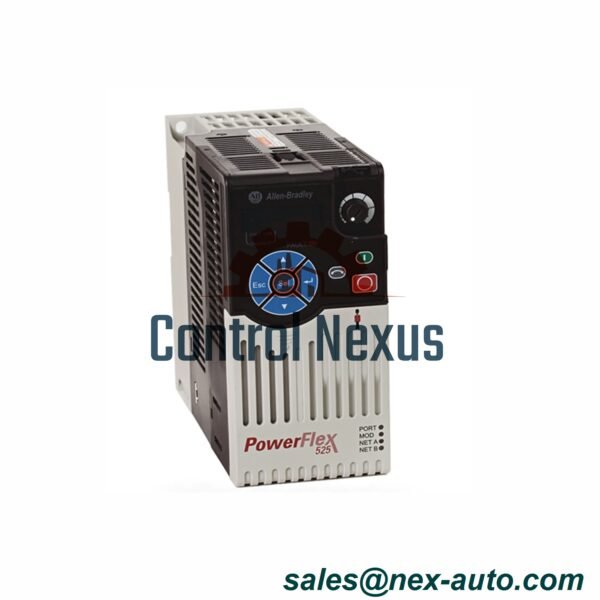

25B-B011N104 – Allen-Bradley PowerFlex 525 Drive

Description

Allen-Bradley 25B-B011N104 PowerFlex 525 Adjustable Frequency AC Drive

Main Specs

Input Voltage: 200-240 VAC, 3-Phase

Output Voltage: 0-230 VAC, 3-Phase

Output Current: 11.0 A

Power: 2.2 kW (3 HP)

Frequency Range: 0-500 Hz

Control: Volts/Hertz, Sensorless Vector, Closed Loop, PM Motor

Ports: RS485, Dual Ethernet

Optional: DeviceNet, ProfiBus

Enclosure: IP20 NEMA Open

Mount: Panel

Frame: E

Work Temp: -10°C to 50°C

Install Steps

Mount on clean and dry panel. Use the right bolt torque. Keep space for air flow. Wire power, motor, and control as per diagram. Check all before power on.

Compatibility

Fits most 3-phase AC motors. Works with Ethernet/IP, DeviceNet, ProfiBus. Fits plant and enterprise control systems.

In the Box

1 × 25B-B011N104 AC Drive

1 × Mount Kit

1 × Quick Guide

No certificate. 12-month warranty.

Shipping

FedEx

UPS

DHL

Extra Specs

Start/Stop: under 50 ms

Overload: 150% for 60 s

Digital In: 7

Digital Out: 2 relay, 2 opto

Analog In: 2

Analog Out: 1

Vibration: 1g, 10-500 Hz

Download PDF file here:PowerFlex 520-series AC Drive
