3300 NSv Extension Cable | Bently Nevada 330930-060-00-05
- Description
- Additional information
- Reviews (0)
- More Products
Description

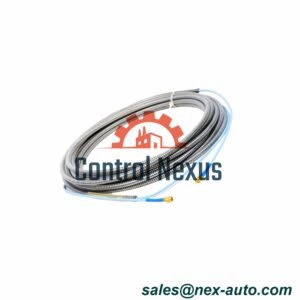

Bently Nevada 330930‑060‑00‑05 Extension Cable
Technical Highlights
- Length: 6.0 m (19.7 ft)
- Impedance: 75 Ω ± 2 %
- Capacitance: 69.9 pF/m typical
- Velocity Factor: 0.69 c
- Dielectric Strength: 1,500 VRMS
- Signal Delay: 4.85 ns/m
- Shelf Life: 1 year from shipment
- Attenuation at 10 kHz: < 3 dB
Mechanical & Environmental Performance
- Temperature Range (Operating): –51 °C to +177 °C
- Temperature Range (Storage): –60 °C to +351 °F
- Shipping Weight: 1.5 kg
- Tensile Strength: 220 N (50 lb) maximum
- Armor: Not included (flexible installation)
- Recommended Gap Setting: 1.0 mm (40 mils)
Electrical Specifications
- Center Conductor Resistance: 0.220 Ω/m (0.067 Ω/ft)
- Shield Resistance: 0.066 Ω/m (0.020 Ω/ft)
- Max Field Wiring Distance: 305 m (1,000 ft)
- Field Wiring Gauge: 0.2 to 1.5 mm² (16–24 AWG), or 0.25 to 0.75 mm² (18–23 AWG) with ferrules
Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 24 × 3 × 24 cm |
