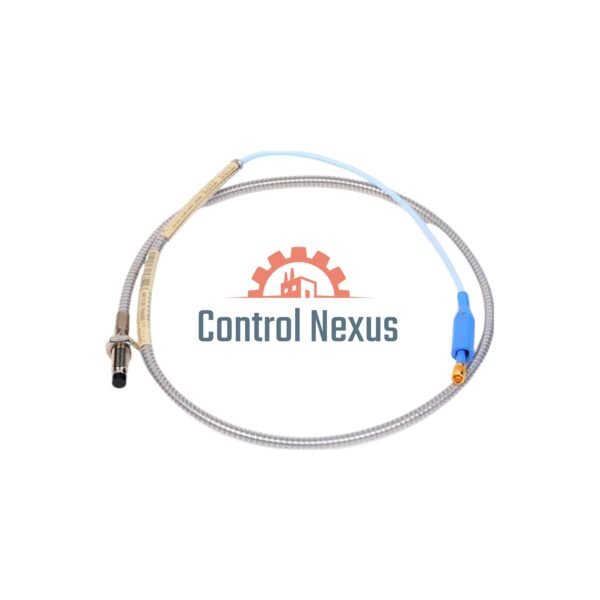

3300 XL 11 mm Probe | Bently Nevada | 330708-00-24-90-12-05

Description

Manufacturer: Bently Nevada

Model: 330708-00-24-90-12-05

Type: 3300 XL 11 mm Proximity Probe

Made in U.S.A

This probe has a 5/8-18 UNF thread and no armor. It is part of the 3300 XL series.

Size Info:

• Unthreaded part: 0 in
• Case length: 2.4 in
• Cable length: 9.0 m (29.5 ft)

Comes with a ClickLoc connector and FluidLoc cable.

Agency Approval: Yes (Option 05)

Materials:

• Tip: PPS plastic
• Case: 304 stainless steel
• Cable: 75 Ω triaxial, FEP jacket

Working Temps:

• -51°C to +177°C (-60°F to +351°F)
• Do not use under -34°C (30°F)

Pressure Seal: Uses Viton O-ring. No test by default. Test on request.

Electrical:

• DC resistance (9 m): 8.5 ± 1.1 Ω

Thread & Torque:

• Thread: 5/8-18 UNF
• Thread depth: 0.938 in
• Max torque: 45.2 N·m (400 in·lb)
• Best torque: 15.2 N·m (133 in·lb)
• Connector torque: 0.565 N·m (5 in·lb)
• Min bend radius: 25.4 mm (1 in)

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
