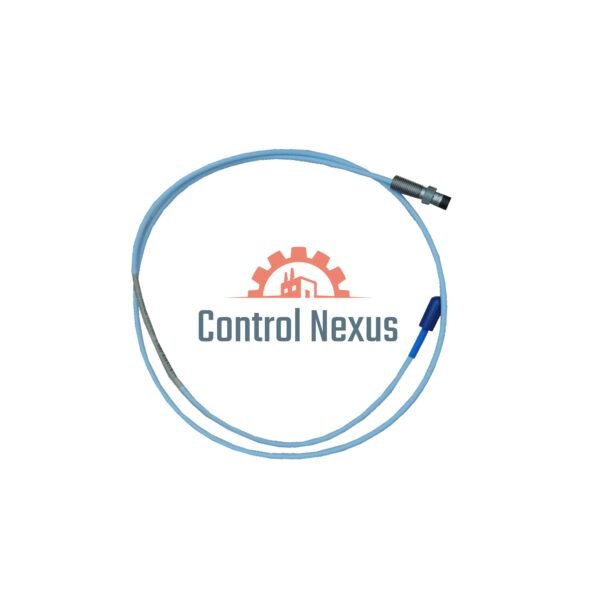

330701-00-15-10-02-05 Bently Nevada | New Proximity Probe

Description

Manufacturer: Bently Nevada

Product Number: 330701-00-15-10-02-05

Product Type: 3300 XL 11 mm Proximity Probe

Mechanical Configuration:

• Unthreaded Length: 00 = 0.0 in
• Case Length Option: 15 = 1.5 in
• Cable Length Option: 10 = 1.0 m (3.3 ft)
• Thread Type: 1/2-20 UNF and M16x1.5
• Max Thread Engagement: 0.750 in (UNF) or 24 mm (M16)

Material and Cable:

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Cable Type: 75 Ω triaxial, insulated with FEP
• Cable Options: 1, 5, or 9 meters

Electrical Specifications:

• Probe Resistance (1.0 m): 5.9 ± 0.5 Ω
• Connector Type: Miniature ClickLoc, standard cable
• Max Connector Torque: 0.565 N·m (5 in·lbf)
• Recommended Torque: Finger tight

Installation Parameters:

• Minimum Bend Radius: 25.4 mm (1.0 in)
• Max Case Torque: 45.2 N·m (400 in·lbf)
• Recommended Case Torque: 15.2 N·m (133 in·lbf)

Environmental Ratings:

• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Pressure Seal: Viton O-ring between tip and case
• Temperature Warning: Avoid below -34°C (30°F) to protect the seal

Model Code Breakdown:

• 330701: 11 mm XL Probe Series
• -00: 0.0 in unthreaded section
• -15: 1.5 in overall case length
• -10: 1.0 m total probe length
• -02: Miniature ClickLoc, standard cable
• -05: Multiple agency approvals

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
