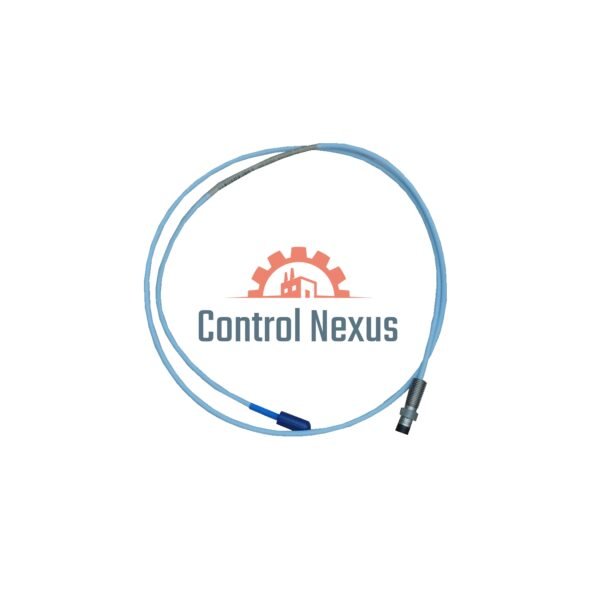

330707-00-20-10-02-00 Bently Nevada | New Proximity Probe

Description

Manufacturer: Bently Nevada

Product Number: 330707-00-20-10-02-00

Product Type: 3300 XL 11 mm Proximity Probe

Made in: U.S.A (Certificate of Origin available)

Model Breakdown:
330707 = 3300 XL 11 mm Probe, 5/8-18 UNF thread, no armor
Unthreaded Length: 00 = 0 in
Case Length: 20 = 2.0 in
Cable Length: 10 = 1.0 meter (3.3 feet)
Connector: 02 = Miniature coaxial ClickLoc, standard cable
Agency Approval: 00 = Not required

Materials & Construction:

• Probe Tip: Polyphenylene sulfide (PPS)
• Probe Case: AISI 304 stainless steel (SST)
• Cable: 75 Ω triaxial, FEP insulated, available in 1, 5 or 9 meters

Mechanical Specifications:

• Thread Type: 5/8-18 UNF and M16x1.5, M14x1.5
• Max Thread Engagement: 0.938 in (5/8-18), 24 mm (M16x1.5), 21 mm (M14x1.5)
• Maximum Torque: 45.2 N·m (400 in·lbf)
• Recommended Torque: 15.2 N·m (133 in·lbf)

Electrical Properties:

• DC Resistance (1 m): 5.9 ± 0.5 ohms
• Connector Torque: Finger tight recommended; max 0.565 N·m (5 in·lbf)
• Minimum Bend Radius: 25.4 mm (1.0 in), with or without stainless steel armor

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
