330876-01-50-01-05 Bently Nevada – New Proximity Probes

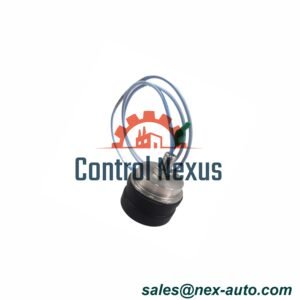

330876-01-50-01-05 3300 XL 50 mm Proximity Probe

The 3300 XL 50 mm probe is built to withstand the harshest steam-turbine DE environments, operating continuously up to 200 °C (392 °F) and surviving short bursts up to 250 °C (482 °F).

Condition: New & Original in Factory Packing

Warranty period: 1 year

Model and Suffix Codes

• 330876 – 3300 XL 50 mm Proximity Probe
• -01 – ½-20 Thread, Straight Exit
• -50 – Total length 5.0 m (16.4 ft); for use with 5 m Proximitor Sensor only
• -01 – High-Temp FluidLoc Cable with Armor
• -05 – Multiple Agency Approvals

Key Specifications

Probe tip: Polyphenylene Sulfide (PPS)

Case material: AISI 304 stainless steel

Cable: 75 Ω triaxial PFA-insulated FluidLoc

DC resistance: 7.6 ± 0.8 Ω (center to coaxial)

Thread engagement: 0.750 in max

Operating Conditions

Temperature: –35 °C to +200 °C (–31 °F to +392 °F)

Short-term up to +250 °C (+482 °F) for ≤ 24 hours
