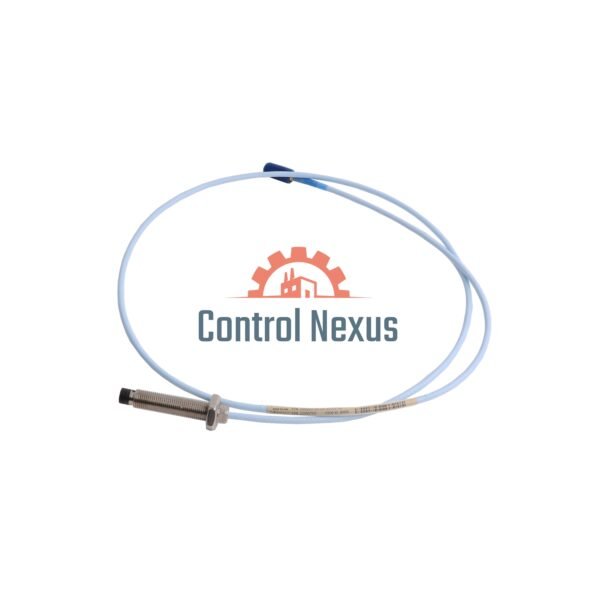

330901-00-17-10-02-05 Bently Nevada – 3300 NSv Probe

Description

330901-00-17-10-02-05 3300 NSv Proximity Probe

Model Code Details

330901: Base 3300 NSv Probe (1/4-28 UNF thread, no armor)
-00: No unthreaded part (0.0 inches)
-17: Case length (1.7 inches)
-10: Total length (1.0 meter / 39 inches)
-02: Mini coaxial ClickLoc connector (standard cable)
-05: Multiple agency approvals

Materials & Key Data

Case: AISI304 stainless steel (resists rust, tensile strength: 515 MPa min)
Tip: PPS plastic (withstands 135°C heat at 1.8 MPa pressure)
Cable: 75 Ω coaxial (FEP insulation, 30 kV/mm dielectric strength)
DC resistance (1.0m): 4.2 ± 0.5 ohms
Torque: Max 7.3 N•m (65 in•lb), best 5.1 N•m (45 in•lb)
Thread fit (1/4-28): Max 0.375 inches deep
Temperature range: Works/stores from -52°C to 177°C (-62°F to 351°F)
Weight: 14-150 grams (0.5-5.3 oz)
Seal: Viton O-ring (retains 70% shape after 70h at 150°C)
