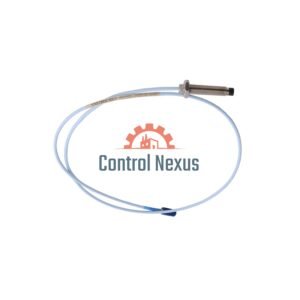

330901-22-40-10-11-00 Bently Nevada – 3300 NSv Probe

Description

Overview

Model: 330901‑22‑40‑10‑11‑00 3300 NSv Proximity Probe

Suffix Breakdown

• 330901 – Series with 1/4‑28 UNF thread, no armor
• 22 – Unthreaded length: 2.2 in
• 40 – Case length: 4.0 in
• 10 – Cable length: 1.0 m (39 in)
• 11 – ClickLoc connector, FluidLoc cable
• 00 – No agency approval required

Key Performance Highlights

Frequency Response: 0.2 – 18 kHz

Response Time: < 1.2 µs

Sensitivity: 48 mV/mil at 0.127 mm gap

Resolution: 0.00008 mm

Insulation Resistance: > 1×10¹² Ω

Tip Capacitance: 75 pF ± 5 pF

Velocity Factor: 0.68 c

Humidity Range: 0 – 100 % RH

Calibration Tolerance: ± 1 % FS

Shelf Life: 1 year (store at –20 °C to +25 °C)

Technical Specifications

Case Material: AISI 304 stainless steel

Tip Material: Polyphenylene sulfide (PPS)

Operating Temp: –52 °C to +177 °C

Storage Temp: –52 °C to +177 °C

Sealing: Viton O‑ring, up to 10 bar differential

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
