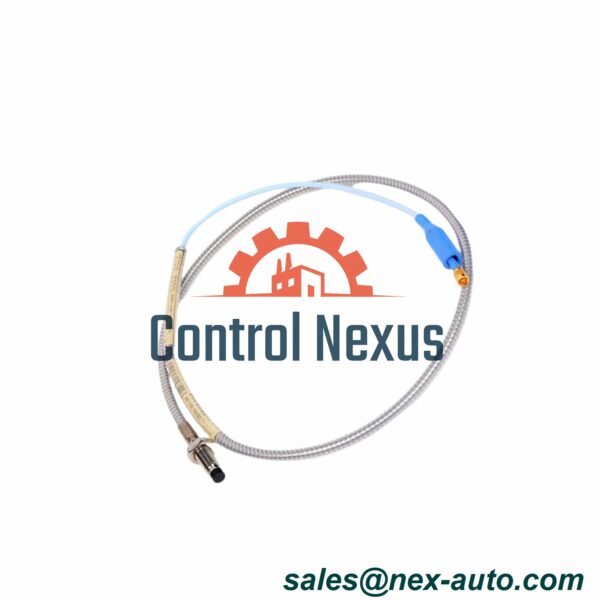

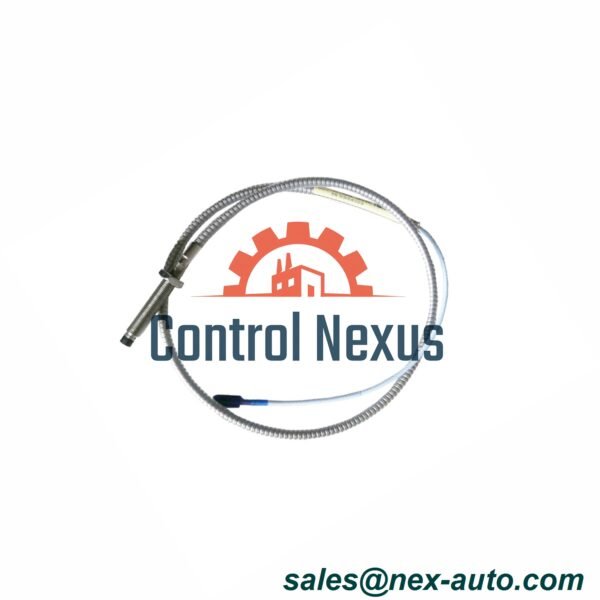

330904-00-10-50-01-05 | Bently Nevada Proximity Probe

Description

3300 NSv Proximity Probe (Part Number: 330904-00-10-50-01-05)

Model Suffix Breakdown

• –00– Unthreaded Length: 0 mm
• –10– Overall Case Length: 100 mm
• –50– Cable Length: 5.0 m (16.4 ft)
• –01– Connector Type: Miniature ClickLoc coaxial with protector
• –05 Agency Approval: UL, CSA, ATEX, IECEx

Core Specifications

• Incremental Scale Factor: 7.87 V/mm ±20%
• Frequency Response: 0–10 kHz (±3 dB)
• Linear Range: 0.25–1.75 mm (10–70 mils)
• Deviation from Straight Line: ±0.06 mm
• Tip Diameter: 2.8 mm (0.110 in)
• Resistance (5.0 m): 5.3 Ω ±0.7 Ω
• Cable Impedance: 75 ±5 Ω
• Capacitance: 69.9 pF/m ±3 pF/m

Enhanced Performance Metrics

• Response Time: ≤50 µs
• Shock Survival: 2000 g (0.5 ms)
• Vibration Tolerance: 50 g (10–2000 Hz)
• Temperature Coefficient: 0.01%/°C
• Dielectric Strength: 1500 Vrms
• Corrosion Resistance Range: pH 2–12
• Probe Mass: 45 g

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
