330905-00-25-05-02-CN Bently Nevada 3300 NSv Probe

Description

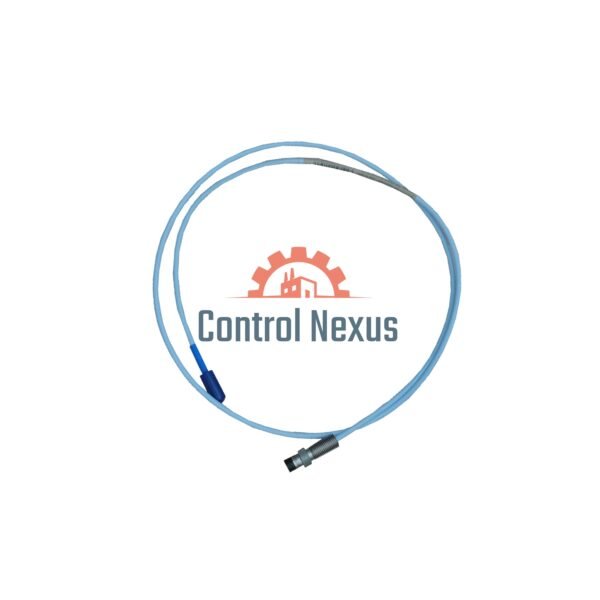

Bently Nevada 3300 NSv Proximity Sensor

Product Highlights

Industrial vibration probe with country-specific certification. Model 330905-00-25-05-02-CN features:

• Case: 250mm stainless steel

• Tip: Chemical-resistant PPS

• Cable: 0.5 meter with ClickLoc plug

Key Specifications

Brand: Bently Nevada

Full Model: 330905-00-25-05-02-CN

Temp Range: -52°C to +177°C

Linear Range: 1.5mm (60 mils)

Output: -1 to -13 Vdc

Accuracy: ±0.06mm max deviation

Technical Details

• Case Length: 250mm

• Thread: M10X1

• Cable: 75Ω coaxial (0.5m)

• Resistance: 4.0 ± 0.5Ω

• Scale Factor: 7.87 V/mm

Installation Guide

1. Set gap to 1.0mm (40 mils)

2. Torque to finger tight (max 0.56 N•m)

3. Maintain 25.4mm bend radius

4. Use shielded triad cable

Compatibility

• Direct replacement for 3300 RAM probes

• Works with 3300 XL NSv Proximitor

• Fits M10X1 threaded mounts

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
