330908-00-08-70-02-05 – Bently Nevada – Dual 3300 NSv Probe

Description

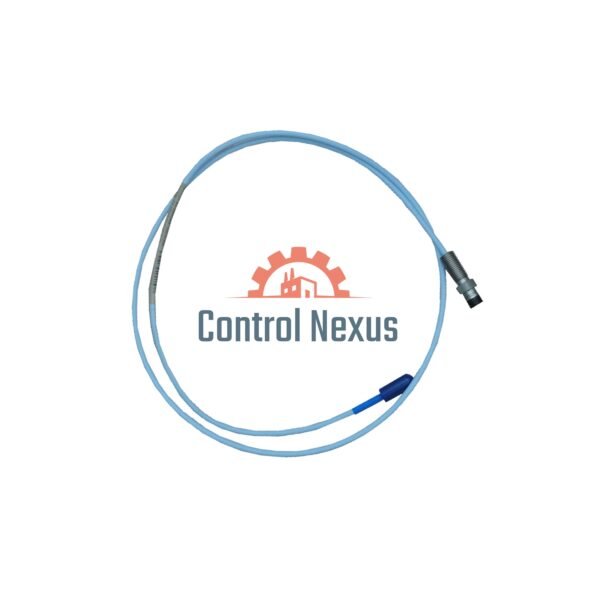

330908‑00‑08‑70‑02‑05 | 3300 NSv Proximity Probe

The 330908‑00‑08‑70‑02‑05 is a small, long cable probe. It has a short 0.8 in case and a long 7.0 m (23 ft) cable. It works well where space is tight but the sensor is far from the monitor.

Model Details

Unthreaded Length (00): 0 in
Case Length (08): 0.8 in
Cable Length (70): 7.0 m (23 ft)
Connector (02): Mini coaxial ClickLoc, 75 Ω, FEP insulated
Approvals (05): Multiple international certifications

Materials

Case: AISI 304 stainless steel
Tip: Polyphenylene sulfide (PPS)
Thread: 3/8‑24 UNF
Max Thread Depth: 0.563 in
Seal: Viton O-ring

Electrical Data

Resistance (7 m): 5.9 Ω ± 0.9
Capacitance: 100 pF/m
Signal Output: 500 mV/mm
Frequency: 0.5 Hz to 10 kHz

Mechanical Specs

Recommended Torque: 11.3 N·m (100 in·lb)
Max Torque: 33.9 N·m (300 in·lb)
Min Cable Bend Radius: 30 mm
Weight: 14 to 150 g (0.5 to 5.3 oz)

Temperature Range

Operating: –52°C to +177°C (–62°F to +351°F)
Storage: –52°C to +177°C (–62°F to +351°F)
Note: Avoid long use below –34°C (–30°F) to protect seal

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
