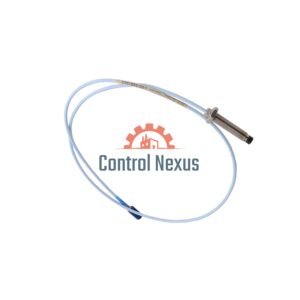

330908-12-46-05-02-05 Bently Nevada New 3300 NSv Probes

Description

Product No: 330908-12-46-05-02-05
Product Type: 3300 NSv Proximity Probes

Proudly made in the U.S.A, the 330908 model delivers precise and durable proximity sensing.

Key Features:

• Model: 330908 3300 NSv Probe
• Thread: 3/8-24 UNF, no armor
• Unthreaded Length: 1.2 inches
• Case Length: 4.6 inches
• Total Length: 0.5 meter (20 inches)
• Connector & Cable: Mini coaxial ClickLoc, 75 Ω FEP insulated cable
• Agency Approval: Multiple Approvals (option 05)

Materials:
The probe case is built from AISI 304 stainless steel for excellent strength.
The tip is made of Polyphenylene sulfide (PPS) to ensure accurate sensing.

Electrical Specs:
The coaxial cable offers 75 Ω resistance. For 0.5 meter length, the DC resistance is 4.0 ± 0.5 ohms.

Installation Details:
Maximum torque on the probe case is 33.9 N·m (300 in·lb). Recommended torque is 11.3 N·m (100 in·lb) to avoid damage.
The max thread engagement length is 0.563 inches.

Temperature Range:
Operates from -52°C to +177°C (-62°F to +351°F). Storage range matches operating range.
Avoid long exposure below -34°C (-30°F) to prevent early pressure seal failure.

Pressure Seal:
Seals pressure with a durable Viton O-ring. Note: probes are not pressure tested before shipping.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
