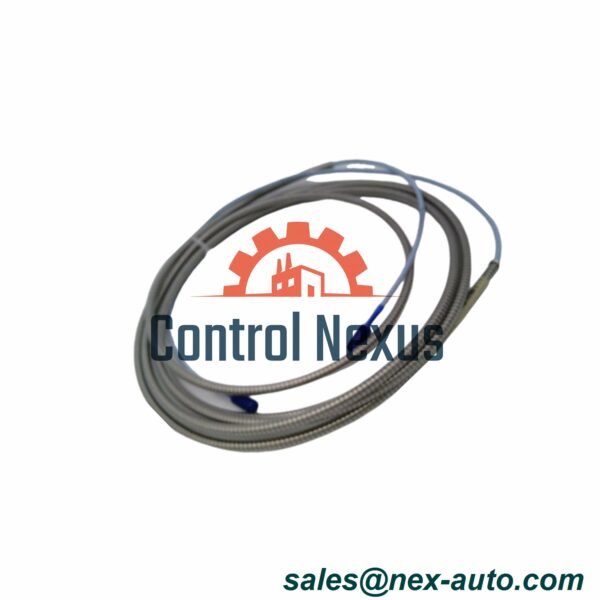

330930-060-00-CN Bently Nevada – New Original Cable

Description

Manufacturer: Bently Nevada

Product No.: 330930-060-00-CN

Product Type: 3300 NSv Extension Cable

Country of Origin: Made in U.S.A

Certificate of Origin: Available if needed

Model Breakdown:

• 330930 = NSv Extension Cable
• 060 = 6.0 meters (19.7 feet) length
• 00 = No stainless steel armor
• CN = Country-specific approvals

Cable Details:

• Material: 75 Ω coaxial, FEP insulated
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Shipping Weight: 1.5 Kg

Electrical Specs:

• Center Conductor Resistance: 0.220 Ω/m (0.067 Ω/ft)
• Shield Resistance: 0.066 Ω/m (0.020 Ω/ft)
• Capacitance: 69.9 pF/m (21.3 pF/ft)

Wiring:

• Wire Size Range: 0.2 to 1.5 mm² (16 to 24 AWG)
• With Ferrules: 0.25 to 0.75 mm² (18 to 23 AWG)
• Max Cable Distance: 305 meters (1,000 feet)
• Recommended: Three-conductor shielded triad cable

Measurement Range:

• Total Linear Range: 1.5 mm (60 mils)
• Effective Range: From 0.25 mm (10 mils) to 1.75 mm (70 mils)
• Voltage Output: About -1 to -13 Vdc
• Best Gap Setting: 1.0 mm (40 mils)

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
