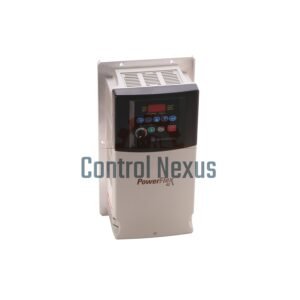

Allen-Bradley 22B-D024H204 | Allen-Bradley 100% Genuine New

Description

Detailed Features of 22B-D024H204

Full Catalog Number: 22B-D024H204

Series: PowerFlex 40

Power Output: 15 HP / 11 kW

Output Current: 24.0 A

Input Voltage: Three-phase 480V AC

Frequency Range: 50 to 60 Hz

Enclosure Type: IP20, Open (NEMA/UL)

Mounting: DIN rail (A/B Frame), optional panel mounting

Overload Capacity: 150% for 60 sec, 200% for 3 sec

Control Method: Keypad input

Communication Interface: RS-485

Filter: No internal CE-compliant filter

MOV to Ground: Removable for ungrounded systems

Relay Pre-Charge: Limits inrush current at startup

Integrated Brake Transistor: Available on all ratings

DIP Switch: Configurable for flexible control wiring

Thermal Rating: Operates in ambient temperatures up to 40°C with zero stacking

Weight: Approximately 3.6 kg (7.9 lbs)

Dimensions (H x W x D): 260 mm x 130 mm x 180 mm (10.2 in x 5.1 in x 7.1 in)

Ambient Humidity: 5% to 95% non-condensing

Service Life: 1 Year

Download PDF file here:PowerFlex 4 and 40 AC Drives
