Allen-Bradley – 22C-B075A103 Adjustable Frequency Drives

Description

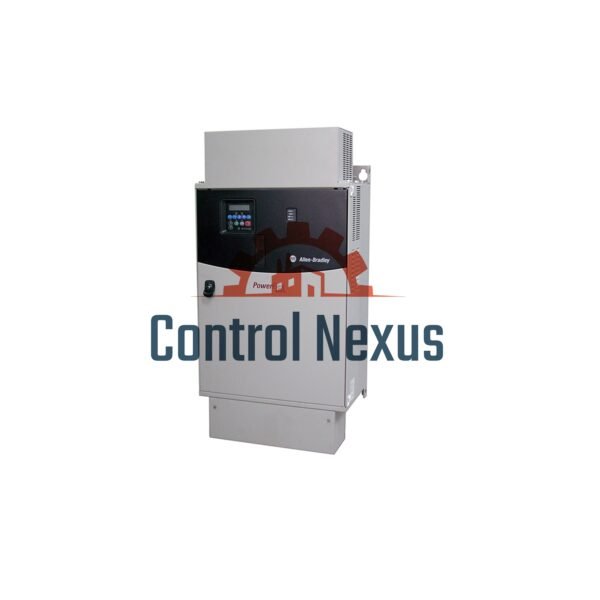

Allen-Bradley PowerFlex 400 — 22C-B075A103

Quick facts

• Input voltage: 200–240 V AC (three-phase, 50–60 Hz)
• Output current: 75 A
• Motor power: 25 HP (~18.5 kW)
• Enclosure: IP30 / NEMA/UL Type 1 (panel mount)
• Power loss (dissipation): 734 W

Control & I/O

• Control modes: V/Hz, slip compensation, PID and PIP
• Built-in keypad and LCD: 2 lines × 16 characters
• Front buttons: hand, auto, off, ESC, sel, ENTER, scroll
• Comms: built-in RS-485 for programming and multi-drop

Protection & installation

• Enclosure has no built-in filter
• Recommended upstream fuse: 100 A
• Mounting clearance: 2 in each side; 6 in top and bottom
• Frame size: D frame (housing)

Size & placement

• Housing size (D frame): 250.0 × 436.2 × 206.1 mm
• Panel mount only. Do not enclose without ventilation and clearance.

Download PDF file here:22C-TD001E-EN-P PowerFlex 400 Adjustable Frequency AC Drives
