Allen-Bradley – 22C-D017H103 Adjustable Frequency Drives

Description

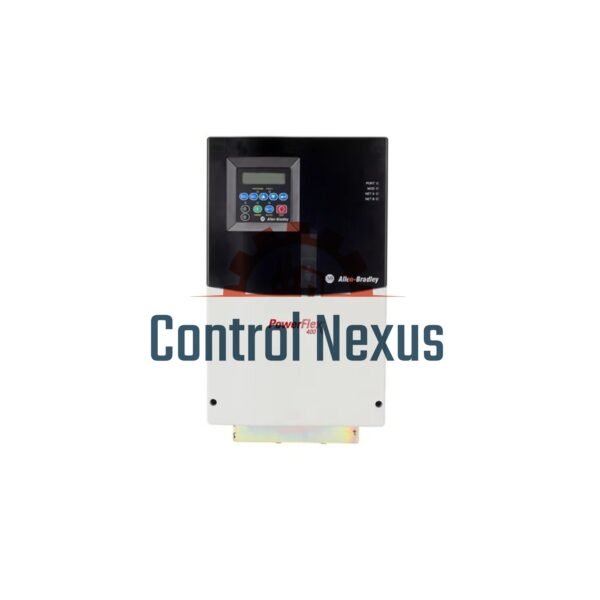

Allen-Bradley 22C-D017H103 PowerFlex 400 Variable Frequency Drive

Main Features

Output current 17 A for motors up to 7.5 kW

Three-phase power input for stable torque

Fixed keypad with two-line LCD for easy setup

Built-in RS-485 for DSI and Modbus communication

Optional Ethernet, ControlNet, PROFIBUS DP modules

V/Hz control with sinusoidal PWM

110% overload for 1 minute

Class 10 motor overload protection

Technical Data

Manufacturer: Rockwell Automation

Brand: Allen-Bradley

Series: PowerFlex 400

Drive Type: Fan and Pump duty

Horsepower: 10 HP

Input Voltage: 380–480 V AC ±10%

Frequency: 48–62 Hz

Phase: Three-phase

Output Frequency Range: 0–320 Hz

Carrier Frequency: 2–10 kHz

Control Power: 24 V DC (sink/source selectable)

Enclosure: IP20 open type

Ambient Temperature: –10°C to 50°C

Frame Size: C

Panel Mount Size: 320 × 116 × 180 mm

Flange Mount Size: 325 × 300 × 244 mm

Download PDF file here:22C-TD001E-EN-P PowerFlex 400 Adjustable Frequency AC Drives
