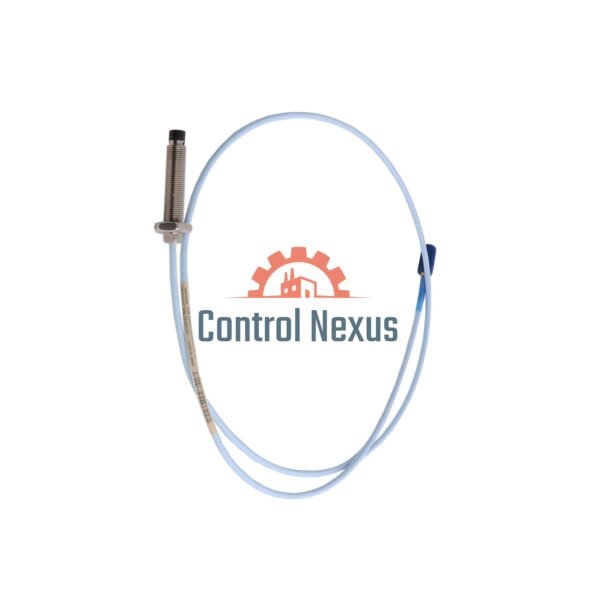

Bently Nevada – 11 mm Proximity Probes – 330707-00-10-50-02-00

Description

Manufacturer: Bently Nevada

Model: 330707-00-10-50-02-00

Type: 3300 XL 11 mm Proximity Probe

The 330707-00-10-50-02-00 probe is made for machines that need strong and stable vibration readings. It works well in hot or cold places and has a strong cable for protection.

Key Features:

• Thread Type: 1/2-20 UNF
• With Armor: Yes
• Unthreaded Length: 00 = 0 in
• Case Length: 10 = 1.0 in
• Cable Length: 50 = 5.0 m (16.4 ft)
• Connector Type: 02 = ClickLoc, coaxial
• Cable Type: 75 Ω triaxial, FEP insulated
• Case Material: AISI 304 stainless steel
• Tip Material: PPS (Polyphenylene sulfide)

Environmental Ratings:

• Temperature Range: -51°C to +177°C (-60°F to +351°F)
• Minimum Bend Radius: 25.4 mm (1.0 in)
• Connector Torque (Max): 0.565 N•m (5 in•lb)
• Case Torque (Max): 45.2 N•m (400 in•lb)
• Case Torque (Recommended): 15.2 N•m (133 in•lb)
• Thread Engagement: Max 0.750 in (1/2-20), or M16x1.5 with 24 mm engagement

Electrical Info:

• DC Resistance (5.0 m): 7.2 ± 0.8 Ω

More Details:

• Approval: 00 = None
• Country of Origin: USA
• COO: Available on request
• Shipping Weight: 0.17 kg
• Storage Life: 1 year

Note: This 5 m probe must be used only with the 5 m Proximitor Sensor. Do not use with sensors for other cable lengths.

Model Breakdown:

• 00: No unthreaded section
• 10: 1.0 inch case length
• 50: 5.0 meter cable
• 02: Coaxial ClickLoc connector
• 00: No approvals

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
