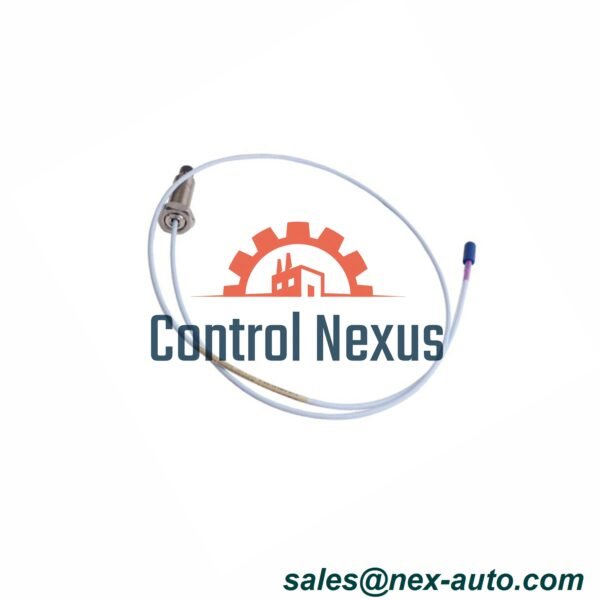

Bently Nevada | 11 mm Proximity Probes | 330707-00-40-10-02-00

Description

Manufacturer: Bently Nevada

Product Model: 330707-00-40-10-02-00

Product Type: 3300 XL 11 mm Proximity Probe

Country of Origin: Made in U.S.A (COO available)

Model Details:

• 330707: 11 mm probe, no armor
• Thread Type: 5/8-18 UNF
• Unthreaded Length (00): 0 in
• Case Length (40): 4.0 in
• Total Cable Length (10): 1.0 meter (3.3 ft)
• Connector Type (02): Mini ClickLoc, standard cable
• Agency Approval (00): Not required

Materials and Build:

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Cable: 75 Ω triaxial, FEP insulated
• Available Cable Sizes: 1 m, 5 m, or 9 m

Temperature and Conditions:

• Operating/Storage Temp: -52°C to +177°C (-62°F to +351°F)
• Min Bend Radius: 25.4 mm (1.0 in)
• Seal Type: Viton O-ring (for pressure sealing)
• Note: Avoid use below -34°C (30°F) to protect the seal
• Shelf Life: 1 year

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
