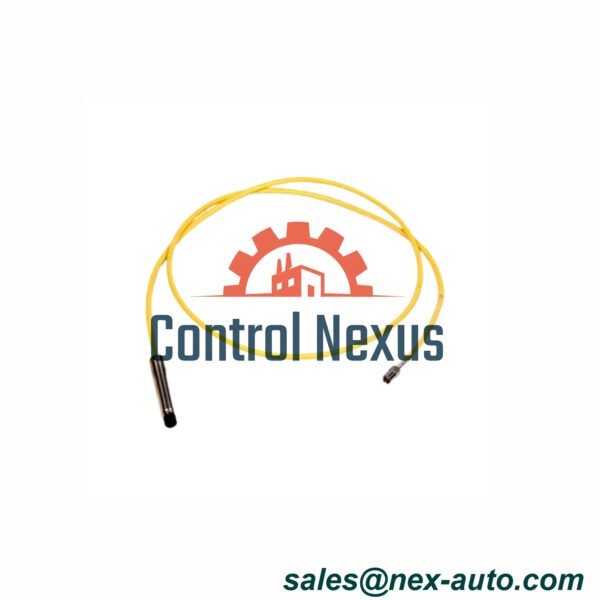

Bently Nevada 21504-00-28-05-02 | 7200 Proximity Standard Mount Probe

Description

Model: 21504-00-28-05-02

Part Number: 21504
Manufacturer: Bently Nevada
Condition: New, factory sealed
Warranty: 1 year

Suffix Details:
00 = Unthreaded length: 0 mm
28 = Case length: 2.8 in
05 = Total cable length: 0.5 m (20 in)
02 = Miniature coaxial male connector

Tip Design: 8 mm diameter, standard case, 3/8‑24 thread, no armor

Electrical Input:
Voltage: –17.5 V to –26 V
Current: Max 12 mA

Output Specs:
Calibrated Range: 2.0 mm
Response starts: 0.25 mm from probe face
Scale Factor: 200 mV/mil (7.87 V/mm), ±4%
Linearity: ±0.02 mm (system-calibrated), ±0.06 mm with full interchangeability
Frequency Response: 0–10 kHz (600,000 cpm), –5% at 10 kHz

Thermal Behavior:
Temp shift: –396 scale factor drift at +65 °C (at 1.27 mm gap)

Environmental Ratings:
Proximitor Temp: –51 °C to +100 °C
Probe/Cable Temp: –34 °C to +177 °C
Humidity: Up to 95%, non-condensing
Corrosion Resistance: Resistant to water, oil, 10% sulfuric acid, ammonium hydroxide, MEK, DMF

Weight: 0.59 kg (1.3 lbs)

Download PDF file here:7200 Proximity Transducer Systems
