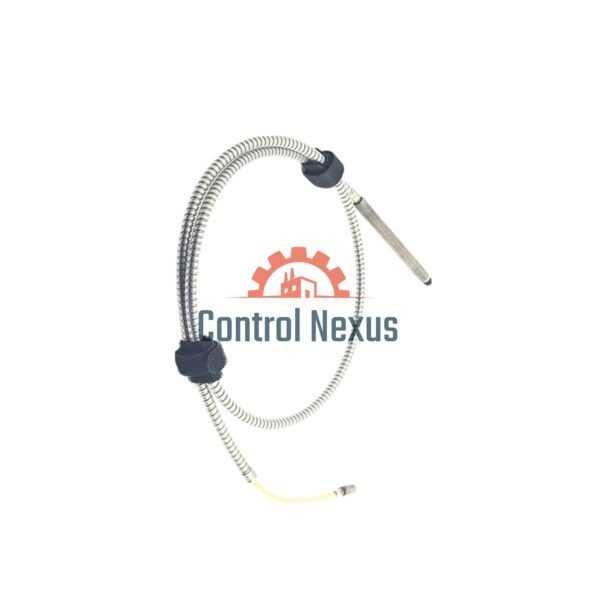

Bently Nevada – 21505-20-48-05-02 3300 XL 8mm Reverse Mount Probe

Description

Key Specifications 21505-20-48-05-02:

Model: 21505 7200 Proximity Transducer Systems

Unthreaded Length: 2.0 in (51 mm)

Overall Case Length: 4.8 in (122 mm)

Total Length: 0.5 metre (20 inches) with tolerance: +0.13 metre, -0.05 metre (+5 inches, -2 inches)

Connector: Miniature male coaxial connector

Probe Construction:

Part No: 21505

Diameter: 8 mm

Case: Standard

Thread Configuration: 3/8-24 threads

Lead Armor: Yes, stainless steel for enhanced durability and protection

Power & Output:

Power: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption

Calibrated Range: 80 mils (2.0 mm), starting from 10 mils (0.25 mm) from the probe face

Scale Factor: 200 mV/mil (7.87 V/mm), ±4% when calibrated as a system

Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line when calibrated as a system

Frequency Response: 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz (600,000 cpm)

Temperature Sensitivity: Typically -396 change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm)

Download PDF file here:7200 Proximity Transducer Systems
