Bently Nevada | 330500-05-00 330500 Piezo-Velocity Sensor

Description

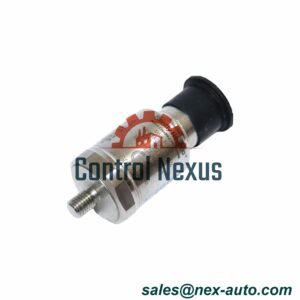

Bently Nevada 330500-05-00 Velomitor Piezo-velocity Sensor

Model Information

• Model Number: 330500-05-00
• Type: Velomitor Piezo-velocity Sensor
• Made In: USA
• Mounting Thread: Not available for 330500 series. Use 330525 for 1/4-18 NPT mount.
• Approval: Not required (-00)

Technical Specifications

• Velocity Range: 1270 mm/s peak (50 in/s)
• Sensitivity: 3.94 mV/mm/s ±5%
• Frequency Response: 4.5 Hz to 5 kHz ±3 dB; 6 Hz to 2.5 kHz ±0.9 dB
• Temperature Sensitivity: -14% to +7.5%
• Amplitude Linearity: ±2% to 152 mm/s peak
• Output Bias Voltage: -12 ±3 VDC
• Output Impedance: <2400 Ω
• Noise Floor: 0.004 mm/s rms

Environment & Physical

• Operating Temperature: -55°C to 121°C (-67°F to 250°F)
• Shock Resistance: Up to 5000 g peak
• Humidity: 100% non-submerged, hermetically sealed
• Weight: 142 g (5 oz)
• Dimensions: Diameter 25.3 mm, Height 63.2 mm
• Case Material: 316L stainless steel
• Connector: 2-pin Mil-C-5015, sealed stainless steel

Installation Guidelines

• Torque: 24 to 40 in-lb (32-46 kg cm) max
• Pin A is positive when sensor moves toward connector
• Recommended cable length: 63 m (208 ft) for 50g vibration at 10 kHz
• Maximum cable length: 305 m (1000 ft) with special cable

Download PDF file here:330500
