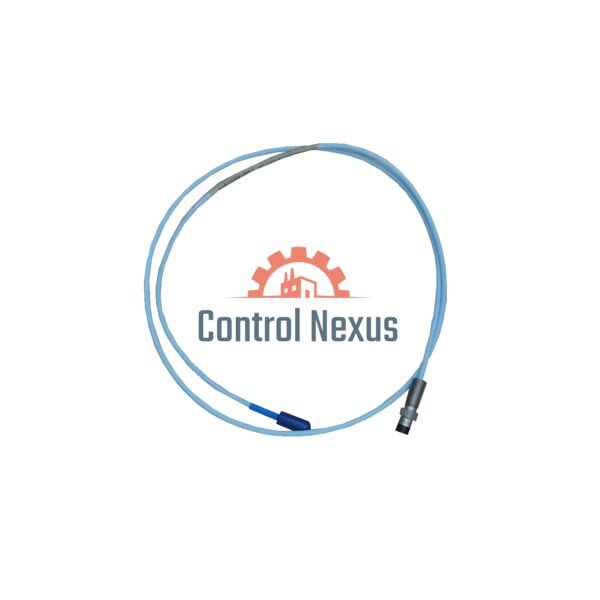

Bently Nevada 330701-00-26-10-11-CN – New Proximity Probes

Description

Product Overview

Brand: Bently Nevada
Model: 330701‑00‑26‑10‑11‑CN
Type: 3300 XL 11 mm Proximity Probe
Made in: U.S.A
Certificate of Origin: Available on request

Main Specifications

• Thread: 1/2‑20 UNF (no armor)
• Unthreaded Length: 0.0 in
• Case Length: 2.6 in
• Total Cable Length: 1.0 m (3.3 ft)
• Connector: Miniature coaxial ClickLoc with protector
• Cable Type: FluidLoc, 75 Ω triaxial, FEP insulated
• Agency Approval: CN (Country Specific)

Material Details

• Tip: Polyphenylene sulfide (PPS)
• Case: AISI 304 stainless steel
• Cable Options: Available in 1 m, 5 m, or 9 m

Electrical and Mechanical Performance

• DC Resistance (1 m): 5.9 ± 0.5 Ω
• Minimum Bend Radius: 25.4 mm (1.0 in)
• Shipping Weight: 0.17 kg

Threading and Torque

• Thread Engagement (1/2‑20): Max 0.750 in
• Max Torque: 45.2 N·m (400 in·lb)
• Recommended Torque: 15.2 N·m (133 in·lb)
• Connector Torque: Max 0.565 N·m (5 in·lb), finger tight advised

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
