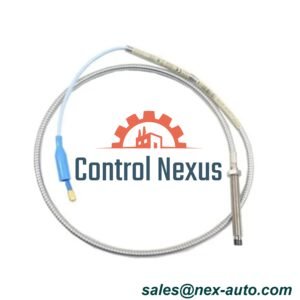

Bently Nevada 330708-00-24-50-01-00 | 11 mm Armored Probe

Description

Manufacturer: Bently Nevada

Product Number: 330708-00-24-50-01-00

Product Type: 3300 XL 11 mm Proximity Probe

Made in U.S.A

Model 330708 is a 3300 XL probe. It has a 5/8-18 UNF thread and no armor.

Size Details

• Unthreaded Length: 0 inches
• Case Length: 2.4 inches
• Total Cable Length: 5.0 meters (16.4 feet)

This 5-meter probe fits only the 5-meter Proximitor Sensor.

Connector and Cable

It has a Mini coaxial ClickLoc connector with protector. The cable is standard FluidLoc type.

Material

• Tip: Polyphenylene sulfide (PPS)
• Case: AISI 304 stainless steel
• Cable: 75 Ω triaxial, FEP insulated

Temperature Range

• Works and stores between -51°C and +177°C (-60°F to +351°F)
• Do not use below -34°C (30°F) to protect the seal

Pressure Seal

Seals pressure with a Viton O-ring. Testing is available if needed.

Electrical

DC resistance for 5 m cable is 7.2 ± 0.8 Ω.

Mechanical

• Thread: 5/8-18 UNF
• Max thread length: 0.938 inches
• Max torque: 45.2 N·m (400 in·lb)
• Use torque: 15.2 N·m (133 in·lb)
• Connector torque: max 0.565 N·m (5 in·lb)
• Minimum bend radius: 25.4 mm (1 inch)

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
