Bently Nevada 330708-00-24-50-01-05 – 3300 XL 11 mm Probe

Description

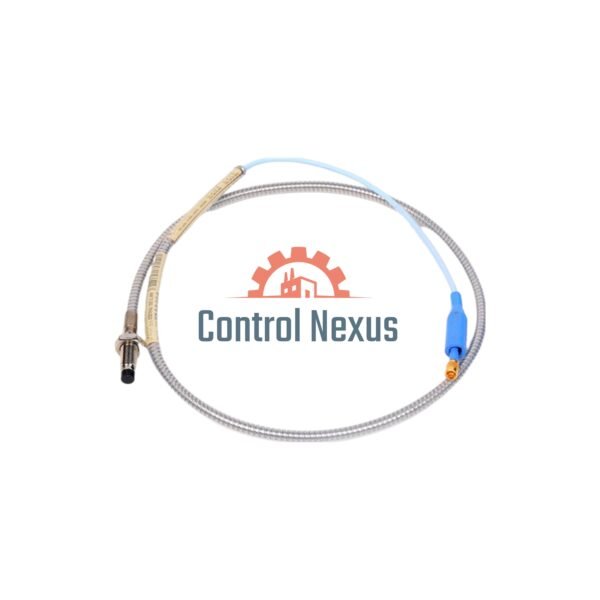

Bently Nevada 330708-00-24-50-01-05 3300 XL 11 mm Proximity Probe

Model Details

• Model Number: 330708-00-24-50-01-05
• Probe Type: 3300 XL 11 mm Proximity Probe
• Thread Type: 5/8-18 UNF, no armor
• Unthreaded Length: 0 inches
• Case Length: 2.4 inches
• Cable Length: 5.0 meters (16.4 feet)
• Connector: Small coaxial ClickLoc with protector
• Cable Type: Standard, FEP insulated
• Agency Approval: Multiple approvals
• Made In: USA
• Note: Designed for use with 5 meter Proximitor Sensor only

Key Specs

• Operating Temp: -51°C to +177°C (-60°F to +351°F)
• Storage Temp: Same as operating
• Tip Material: Polyphenylene Sulfide (PPS)
• Case Material: Stainless Steel (AISI 304)
• Cable Type: 75 Ω triaxial, FEP insulated
• Cable Length Options: 1, 5, or 9 meters
• DC Resistance (5m): 7.2 ± 0.8 ohms
• Max Torque (Case): 45.2 N·m (400 in·lbs)
• Recommended Torque: 15.2 N·m (133 in·lbs)
• Connector Max Torque: 0.565 N·m (5 in·lbs)
• Min Bend Radius: 25.4 mm (1 inch)
• Max Thread Engagement: 0.938 inches (24 mm for M16x1.5 thread)

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
