Bently Nevada 330708-00-24-50-12-05 – 3300 XL 11 mm Probe

Description

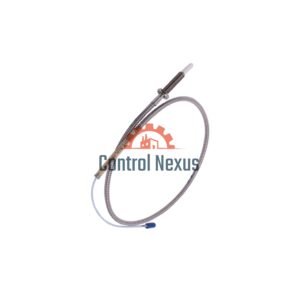

Bently Nevada 330708-00-24-50-12-05 3300 XL 11 mm Proximity Probe

Key Specs

Operating Temp: -51°C to +177°C (-60°F to +351°F)

Storage Temp: Same as operating

Tip Material: Polyphenylene Sulfide (PPS)

Case Material: Stainless Steel (AISI 304)

Cable Type: 75 Ω triaxial, FEP insulated

Cable Length Options: 1, 5, or 9 meters

DC Resistance (5m): 7.2 ± 0.8 ohms

Max Torque (Case): 45.2 N·m (400 in·lbs)

Recommended Torque: 15.2 N·m (133 in·lbs)

Connector Max Torque: 0.565 N·m (5 in·lbs)

Min Bend Radius: 25.4 mm (1 inch)

Max Thread Engagement: 0.938 inches or 24 mm (M16x1.5)

Installation Tips

Apply correct torque to avoid damage.

Do not exceed max thread engagement length.

Keep bend radius at least 25.4 mm.

Do not expose to temps below -34°C to protect seal.

Tighten connectors finger-tight only.

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
