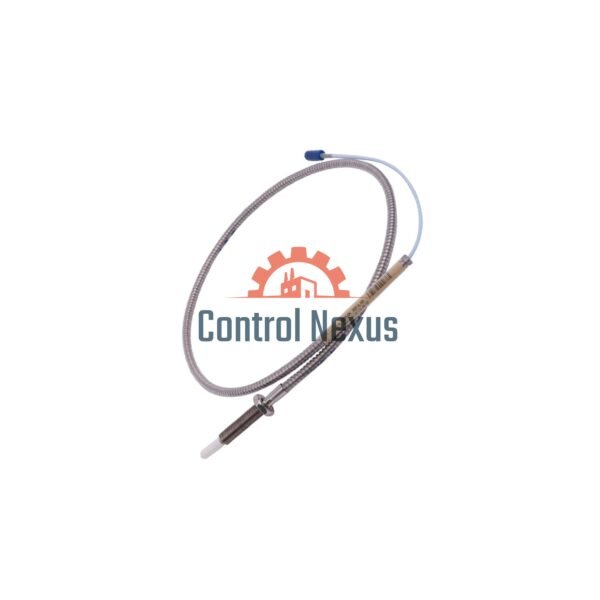

Bently Nevada 330708-00-24-90-02-00 | 11 mm Armored Probe

Description

Bently Nevada 330708-00-40-10-02-00 3300 XL 11 mm Proximity Probe

Model Details

• Model Number: 330708-00-40-10-02-00
• Probe Type: 3300 XL 11 mm Proximity Probe
• Thread Type: 5/8-18 UNF, no armor
• Unthreaded Length: 0 inches
• Case Length: 4.0 inches
• Cable Length: 9.0 meters (29.5 feet)
• Connector: Miniature coaxial ClickLoc
• Cable Type: Standard, FEP insulated
• Agency Approval: Not required
• Made In: USA

Key Specs

• Operating Temp: -51°C to +177°C (-60°F to +351°F)
• Storage Temp: Same as operating
• Tip Material: Polyphenylene Sulfide (PPS)
• Case Material: Stainless Steel (AISI 304)
• Cable Type: 75 Ω triaxial, FEP insulated
• Available Cable Lengths: 1, 5, or 9 meters
• DC Resistance (9m): 8.5 ± 1.1 ohms
• Max Torque (Case): 45.2 N·m (400 in·lbs)
• Recommended Torque: 15.2 N·m (133 in·lbs)
• Connector Max Torque: 0.565 N·m (5 in·lbs)
• Min Bend Radius: 25.4 mm (1 inch)
• Thread Engagement: Max 0.938 in or 24 mm (M16), 21 mm (M14)

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
