Bently Nevada | 330901-00-60-10-01-00 3300 NSv Proximity Probes

Description

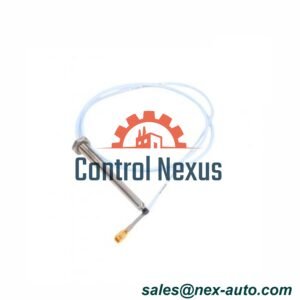

330901-00-60-10-01-00 3300 NSv Proximity Probe Details

Model Info

Base Model: 330901 – 3300 NSv Probe with 1/4-28 UNF thread (no armor)

• Unthreaded Length (00): 0.0 inches (fits tight spots)
• Case Length (60): 6.0 inches (longer body for more reach)
• Total Length (10): 1.0 meter (39 inches) – common cable length
• Connector & Cable (01): Small ClickLoc connector with protector; 75Ω FEP-insulated cable
• Approval (00): No extra tests needed for general use

Materials Used

Probe Case: AISI 304 stainless steel (resists rust; strong, 505 MPa min)

Probe Tip: PPS (a strong plastic that handles up to 200°C)

Cable: 75Ω coaxial with FEP insulation; 1.0m length (3.5mm thick for easy setup)

Performance Numbers

DC Resistance (1.0m): 4.2 ± 0.5 ohms (center to outer)

Torque: Max 7.3 N·m (65 in·lbs); safe at 5.1 N·m (45 in·lbs) for 1/4-28 threads

Thread Fit: Max 0.375 inches (secure install)

Environment & Safety

Temperature: Works/stores from -52°C to +177°C (-62°F to +351°F). Using below -34°C (-30°F) long may hurt the seal.

Pressure Seal: Viton O-ring seals pressure. Not tested before shipping.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
