Bently Nevada – 330903-00-02-05-02-00 – 3300 NSv Probe

Description

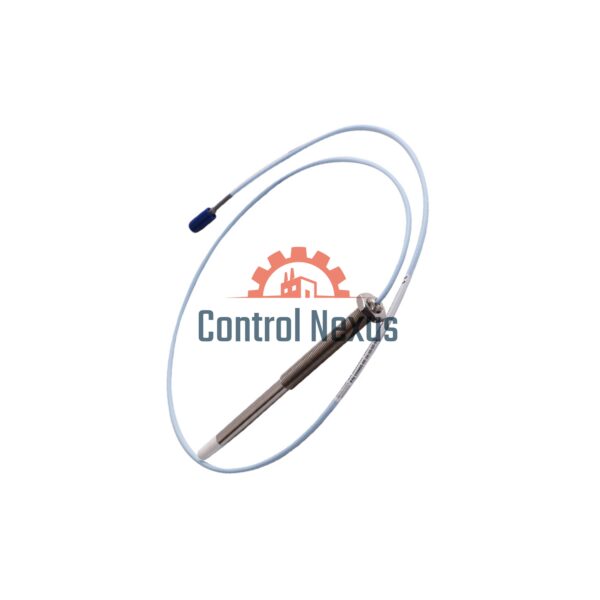

Bently Nevada 330903-00-02-05-02-00 | 3300 NSv Proximity Probe – Compact Precision Monitoring

Model and Suffix Breakdown

• Base Model: 330903 – 3300 NSv Probe
• Thread Option: 00 – M8x1, no armor
• Case Length: 02 – 20 mm
• Cable Length: 05 – 0.5 meter (20 inches)
• Connector Type: 02 – Miniature coaxial with ClickLoc
• Agency Option: 00 – Not required

Technical Data

• Brand: Bently Nevada
• Model: 330903-00-02-05-02-00
• Measuring Range: 0.25 to 1.75 mm (10 to 70 mils)
• Linear Range: 1.5 mm (60 mils)
• Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5% / -20%
• Accuracy (DSL): Within ±0.06 mm (±2.3 mils)
• Frequency Response: 0–10 kHz, +0/-3 dB (up to 305 m field wiring)
• Operating Temp: -52°C to +177°C (-62°F to +351°F)
• Storage Temp: Same as operating
• Output Signal: Proportional DC voltage
• Recommended Gap: 1.0 mm (40 mils)

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
