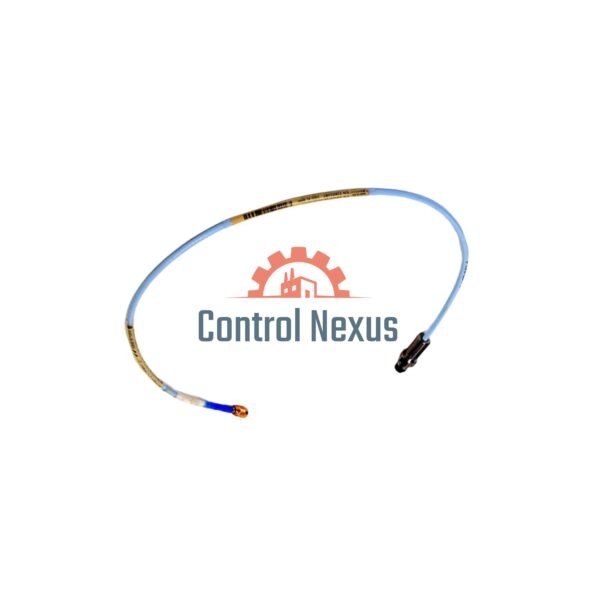

Bently Nevada | 330903-00-04-70-02-00 | 3300 NSv Proximity Probes

Description

Technical Specifications

Brand: Bently Nevada
Model: 3300 NSv Series
Part Number: 330903-00-04-70-02-00

Suffix Breakdown:
– -00- Unthreaded Tip Length: 0 mm
– -04- Case Length: 40 mm
– 70 Total Probe Length: 7.0 meters
– 02 ClickLoc™ Connector with standard cable
– 00 Agency Approval: Not required

Linear Range: 1.5 mm (60 mils), from 0.25 mm to 1.75 mm
Gap Setting: 1.0 mm (40 mils) recommended
Scale Factor: 7.87 V/mm (200 mV/mil), ±12.5%/-20%
Accuracy: DSL < ±0.06 mm (±2.3 mils)
Probe Resistance: 5.9 ± 0.9 Ω at 7.0 m
Frequency Range: 0 – 10 kHz typical
Signal Output: Non-contact voltage

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
