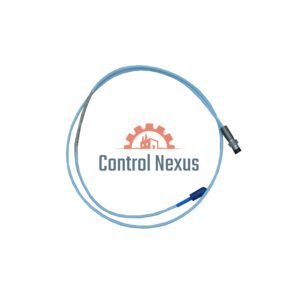

Bently Nevada | 330903-00-05-50-02-05 3300 NSv Proximity Probes

Description

Technical Data

Brand: Bently Nevada
Model: 330903‑00‑05‑50‑02‑05
Measurement Range: 0.25 – 1.75 mm (10 – 70 mils)
Accuracy (DSL): ± 0.06 mm (± 2.3 mils)
Signal Output: –1 to –13 Vdc
Operating Temp: –52 °C to +177 °C (–62 °F to +351 °F)
Cable Resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
Cable Capacitance: 69.9 pF/m
Recommended Gap: 1.0 mm (40 mils)

Installation Guide

Hand-tighten until snug. Do not exceed 0.56 N·m (5 in·lb). For probe-case connections, max 7.3 N·m (65 in·lb), recommended 5.1 N·m (45 in·lb).

Compatibility

Mechanically and electrically compatible with 3300 RAM probes and Proximitor sensors. Supports field wiring up to 305 m (1,000 ft) without signal loss.

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
