Bently Nevada – 330905-05-10-05-12-05 New NSv Probe

Description

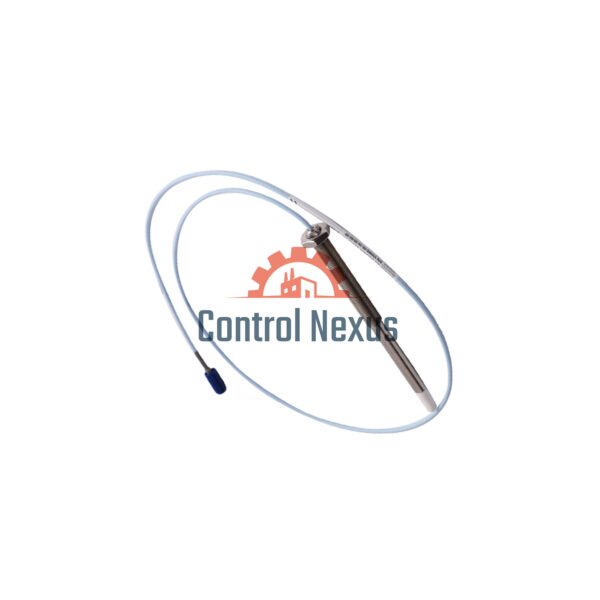

Bently Nevada 330905-05-10-05-12-05 | 3300 NSv Proximity Probe

Technical Specifications

Brand: Bently Nevada
Model: 330905-05-10-05-12-05
Thread Type: M10x1
Unthreaded Length (-05): 50 mm
Case Length (-10): 100 mm
Total Cable Length (05): 0.5 meter (20 in)
Connector Type (12): ClickLoc Miniature Coaxial with FluidLoc Cable
Agency Approvals (05): Multiple international certifications

Performance Details

Linear Range: 1.5 mm (60 mils), from 0.25 mm to 1.75 mm
Recommended Gap: 1.0 mm (40 mils)
Scale Factor: 7.87 V/mm (200 mV/mil), ±12.5% / -20%
Accuracy (DSL): ±0.06 mm (±2.3 mils)
Frequency Response: 0 to 10 kHz, with full signal up to 305 m of field wiring

Materials & Environmental

Tip Material: PPS (Polyphenylene Sulfide)
Case Material: AISI 304 Stainless Steel
Cable: 75Ω FEP-insulated coaxial
Operating Temp: -52°C to +177°C (-62°F to +351°F)
Storage Temp: -52°C to +177°C (-62°F to +351°F)
Bend Radius: Min. 25.4 mm (1.0 in)

Installation Guide

Recommended Gap: 1.0 mm
Torque for Installation: Max. 0.56 N•m (5 in•lb), Finger-tight recommended
M10x1 Threads Engagement: Max. 15 mm

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
