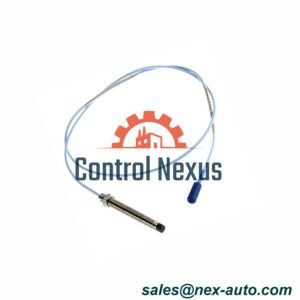

Bently Nevada 330908-00-18-05-02-05 – Brand New NSv Probe

Description

Model: 330908‑00‑18‑05‑02‑05

Key Specifications

Thread: 3/8‑24 UNF

Unthreaded Length: 0.0 in

Case Length: 1.8 in

Cable Length: 0.5 m (20 in)

Connector: Miniature coaxial ClickLoc (Option 02)

Approvals: Multiple (Option 05)

Materials & Performance

Case Material: AISI 304 stainless steel

Tip Material: Polyphenylene sulfide (PPS)

Cable: 75 Ω coaxial, FEP insulated; ≤ 0.5 dB/m attenuation

Resistance: 4.0 ± 0.5 Ω (0.5 m cable)

Torque Limits: Rated 33.9 N·m, Recommended 11.3 N·m

Operating Temp: −52 °C to +177 °C

Shelf Life: 1 year

Enhanced Features

Frequency Response: 0.5 Hz – 20 kHz

Shock Resistance: up to 5 000 g

Response Time: 3 ms

Max Bend Radius: 5 mm

O-Ring Hardness: 75 Shore A

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
