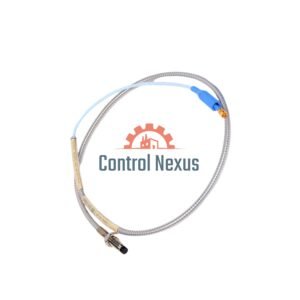

Bently Nevada 3300 NSv Proximity Probe – Model: 330904-08-15-70-11-05

Electrical Characteristics:

• Probe DC Resistance at 7.0 m length: 5.9 ± 0.9 Ω
• Extension Cable Resistance: Center 0.220 Ω/m, Shield 0.066 Ω/m
• Capacitance of Extension Cable: 69.9 pF/m
• Max Recommended Field Wiring Length: 305 meters (1000 feet)
• Field Wiring Specification: 0.2 to 1.5 mm² (16 to 24 AWG)

Measurement Capabilities:

• Linear Measurement Range: 1.5 mm (60 mils), effective from 0.25 mm to 1.75 mm
• Recommended Gap Setting: 1.0 mm (40 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil), ±12.5% / -20%
• Deviation from Best Fit Line (DSL): Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz with up to 305 meters of field wiring

Physical Construction:

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 Stainless Steel (SST)
• Cable Type: 75 Ω coaxial, FEP insulated
• Minimum Bend Radius (with or without armor): 25.4 mm (1.0 inch)
• Available Probe Lengths: 0.5, 1, 5, or 7 meters
