Bently Nevada – New Proximity Probes 330876-01-50-00-05

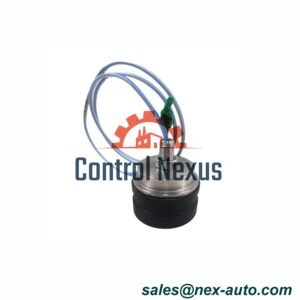

330876-01-50-00-05 3300 XL 50 mm Proximity Probe

Model & Suffix Breakdown

330876 – 3300 XL 50 mm Proximity Probe

-01 – ½-20 Thread, Straight Exit

-50 – Total length 5.0 m (16.4 ft); for use with 5 m Proximitor Sensor only

-00 – High-Temp FluidLoc Cable

-05 – Multiple Agency Approvals

Key Specifications

Probe tip: Polyphenylene Sulfide (PPS)

Case material: AISI 304 stainless steel

Cable: 75 Ω triaxial PFA-insulated FluidLoc

DC resistance: 7.6 ± 0.8 Ω (center to coaxial)

Max thread engagement: 0.750 in

Case diameter: 1.99 in

Operating Conditions

Operating/storage: –35 °C to +200 °C (–31 °F to +392 °F)

Short-term (≤ 24 h): up to +250 °C (482 °F)
