Bently Nevada – New Proximity Probes 330876-03-90-01-05

Description

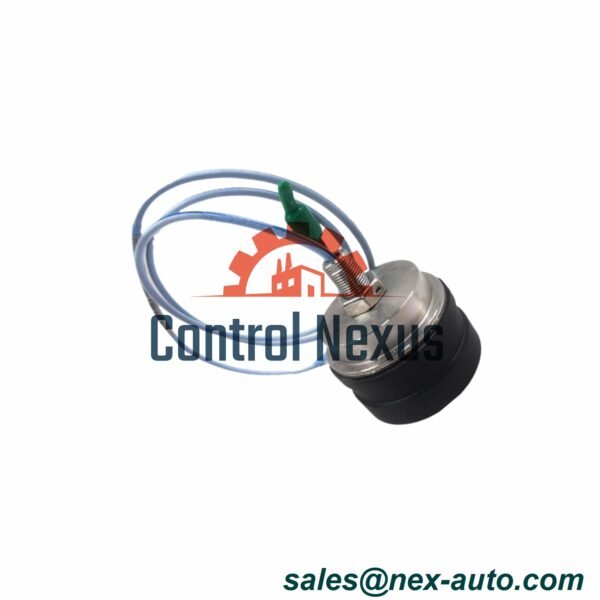

330876-03-90-01-05 3300 XL 50 mm Proximity Probe

Model and Suffix Codes

330876

03 – Smooth 1.99 in dia, side exit

90 – 9.0 m (29.5 ft) cable

01 – High-temp FluidLoc cable with armor

05 – Multiple agency approvals

Technical Specifications

Range: 0–50 mm

Accuracy: ±2 μm

Output signal: 0–10 VDC

Frequency response: 0–10 kHz

Insulation resistance: ≥10⁹ Ω

Operating temp: –35°C to 200°C

Short-term max temp: up to 250°C for 24 h

Probe tip: PPS polymer

Case: 304 stainless steel, 1.99 in dia

Cable: 75 Ω triaxial PFA FluidLoc

Download PDF file here:3300 XL 50 mm Proximity Transducer System Datasheet
