GE Fanuc IC695PSD140 Power Supply Module

Description

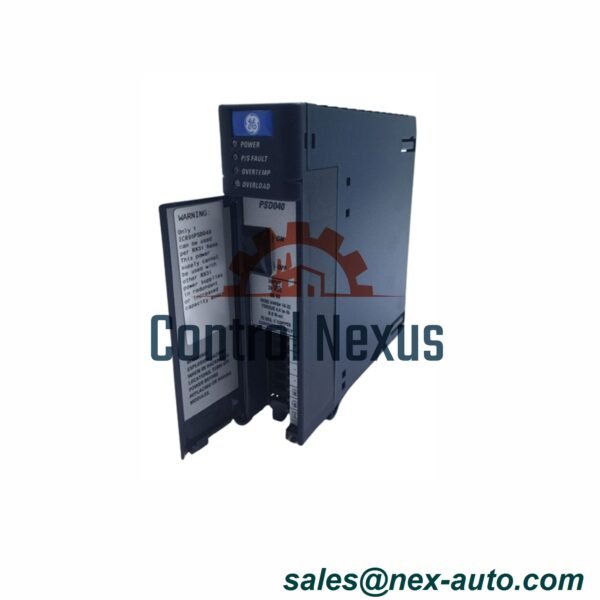

GE Fanuc IC695PSD140 PACSystems RX3i Multipurpose Power Supply Module

Product Overview

The IC695PSD140 is a multipurpose power supply module for PACSystems RX3i.

It supports load sharing and redundancy applications.

This module provides three outputs: 5.1 VDC, 3.3 VDC, and 24 VDC.

The module fits a RX3i universal backplane and occupies two slots.

Up to four IC695PSD140 modules can run in parallel for increased capacity.

LED indicators display power, fault, overload, and temperature status clearly.

The IC695PSD140 cannot mix with IC695PSD040 or IC695PSA040 in redundancy mode.

Technical Specifications

Brand: GE Fanuc

Series: PACSystems RX3i

Part Number: IC695PSD140

Type: Power Supply Module

Input Voltage Range: 18 to 30 VDC

External Supply: 100-240 VAC or 0-125 VDC

Nominal Output Voltage: 24 VDC, 5.1 VDC, 3.3 VDC

Output Current: 24 VDC: 0-1.6 A; 5.1 VDC: 0-6 A; 3.3 VDC: 0-9 A

Output Power: 40 Watts maximum

Ripple & Noise: 150 mV

Ride-through Time: 20 ms

LED Indicators: Power, Fault, Overload, Overtemperature

Installation: RX3i Universal Backplane

Terminal Wire Size: #14 – 22 AWG

Maximum Terminal Current: 6 Amps

Supports: Load Sharing & Redundancy
