Series 90-30 Component GE Fanuc IC693DNM200

Description

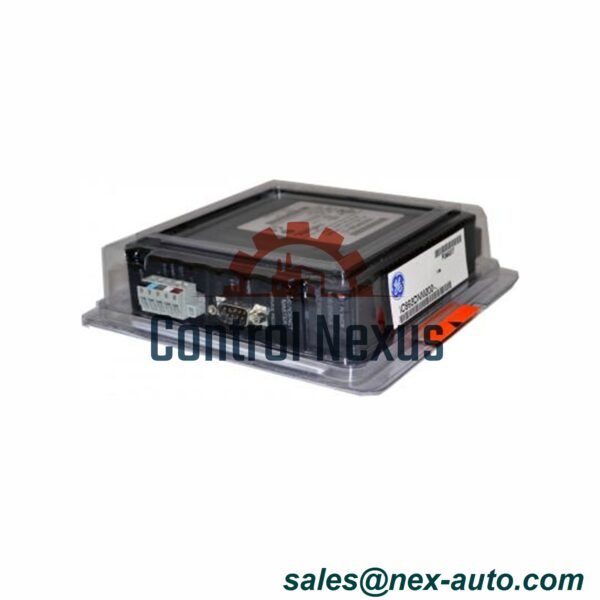

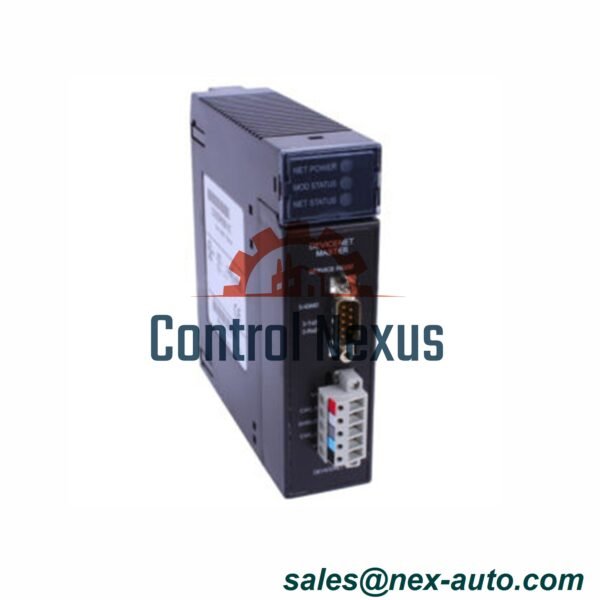

GE Fanuc IC693DNM200 Series 90-30 DeviceNet Master Module

Product Overview

The GE Fanuc IC693DNM200 is a single-slot DeviceNet Master Module for the Series 90-30 platform. It supports both master and slave operation. The module provides one DeviceNet terminal and one RS232 service port. It works with 125K, 250K, and 500K Baud speeds for reliable communication. It manages up to 63 slaves and supports 255 input bytes and 255 output bytes per slave.

Technical Specifications

• Brand: GE Fanuc
• Model: IC693DNM200
• Series: Series 90-30
• Product Type: DeviceNet Master Module
• Compatibility: Series 90-30, PACSystems RX3i
• Ports: 1 DeviceNet terminal, 1 RS232 service port
• Communication: DeviceNet protocol
• Speeds: 125K, 250K, 500K Baud
• Slot Location: Any slot except 0 and 1
• Rated Voltage: 12–24 VDC positive logic
• Current Draw: 450 mA at 5 VDC
• Inrush Current: 5.4 Amps for 10 ms
• Data Transfer per Slave: 255 input bytes / 255 output bytes
• Total Data Transfer: 3972 input bytes / 3972 output bytes
• Max Slaves: 63
• I/O Connections: 2 per slave, 126 total
• Outputs: 32, grouped in 4s
• Output Current: 0.5 A per point, 4 A per group
• ON-State Voltage Drop: 0.3 VDC
• Response Time: 0.5 ms max
• Operating Temp: 0–60 °C (32–140 °F)
• Storage Temp: -40–85 °C (-40–185 °F)

Main Features

• Supports Master and Slave dual mode
• Allows polled, strobe, cyclic, and COS I/O connections
• Handles explicit messaging and UCMM
• Provides proxy connection for each slave
• Upgradeable firmware through RS232 port
• Configurable fault response for communication loss

Installation Guide

• Mount the IC693DNM200 on the Series 90-30 or RX3i rack
• Do not install in slots 0 or 1
• Use a 12–24 VDC supply with 450 mA at 5 VDC backplane draw
• Connect DeviceNet slaves with standard wiring
