Series 90-70 PLC Module IC697MDL740

Description

Overview

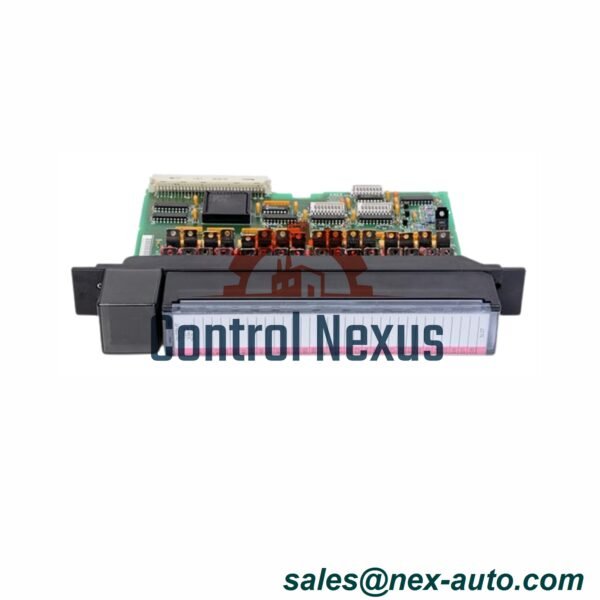

The IC697MDL740 by GE Fanuc’s Series 90‑70 is a rack‑mountable discrete output module offering 16 output points. Designed for heavy‑duty PLC applications, it features keying protection to prevent incorrect installation.

Technical Highlights

• Rated Voltage: 24–48 V DC
• Output Current: 2 A per point / 4 A per group
• Voltage Range: 20–60 V DC
• Isolation Voltage: 1500 V AC
• Inrush Current: 20 A for 20 ms
• Response Time (ON/OFF): 2 ms / 2 ms (max)
• Voltage Drop: 0.8 V / 0.4 Ω (max)
• LED Indicators: 16 status LEDs

Additional Information

• Dimensions (W × H × D): 12.7 × 116 × 102 mm
• Weight: 0.42 kg
• Operating Temperature: –20 °C to +60 °C
• Storage Temperature: –40 °C to +85 °C
• Ambient Humidity: 5 – 95 % non‑condensing
• Power Dissipation: 5 W (max)

Compatibility & Installation

Mounts on GE Fanuc IC697 racks, communicates via VME bus. Supports 0.36–2.10 mm² wiring; adhere to GE torque (0.5–0.6 N·m) and clearance guidelines for optimal cooling.

Warranty

1‑Year Limited Warranty
