Understanding Proof Test Coverage in Safety Systems

Mastering Functional Safety: The Critical Role of Proof Test Coverage in SIL Calculations

The Overlooked Factor in Safety Instrumented Systems

Proof test coverage (Cpt) remains one of the most misunderstood elements in safety instrumented function verification. While engineers frequently discuss PFDavg and safety integrity levels, Cpt directly determines testing effectiveness. Understanding this parameter proves essential for IEC 61511-1 compliance and realistic safety claims.

Defining Proof Test Coverage

Proof test coverage represents the percentage of dangerous undetected failures that testing can detect. A Cpt of 1.0 indicates perfect detection capability, while 0.7 means only 70% of failures are identified. Undetected failures accumulate over time, significantly impacting the average probability of failure on demand.

Mathematical Impact on System Safety

The standard PFDavg equation often assumes perfect detection capability. However, the more accurate formula incorporates Cpt explicitly:

This equation accounts for both testing intervals and system lifetime contributions to risk assessment.

Practical Example: Cpt’s Dramatic Effect

Consider two systems with identical components but different test coverage:

Case A (55% coverage): Achieves SIL 1 with RRF ≈ 96

Case B (95% coverage): Achieves SIL 2 with RRF ≈ 485

This demonstrates how test quality alone can determine safety integrity level compliance.

Realistic Cpt Values for Common Components

Determining Accurate Cpt Values

For IEC 61508-certified equipment, consult manufacturer FMEDA reports. These documents provide validated Cpt values for specific testing procedures. For non-certified components, use industry databases like OREDA or established references such as Goble’s verification handbook.

Common Misconceptions and Pitfalls

Many engineers confuse proof test coverage with diagnostic coverage. However, Cpt relates to manual testing procedures while DC concerns built-in self-checks. Another frequent error involves assuming 100% coverage for full stroke testing, which may miss certain failure modes.

Practical Implementation Strategies

Always document testing assumptions and procedures thoroughly. Select components designed for testability when possible. For existing systems, enhance testing methods by adding leak detection or position feedback rather than increasing test frequency alone.

Industry Expert Commentary

Functional safety specialists emphasize that many facilities underestimate Cpt’s importance. “We frequently find safety systems operating at lower SIL levels than assumed due to inadequate test coverage analysis,” notes senior safety consultant John Merten. “Proper Cpt assessment represents one of the most cost-effective safety improvements available.”

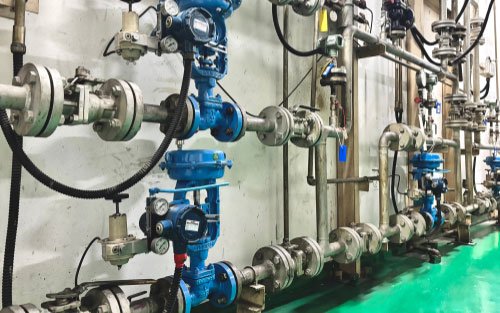

Application Scenario: Valve Testing Optimization

A chemical plant discovered their partial stroke testing provided only 60% coverage for critical shutdown valves. By implementing quarterly full stroke testing alongside monthly partial strokes, they achieved 90% effective coverage while maintaining operational flexibility. This improvement elevated their SIF from SIL 1 to SIL 2 without hardware changes.

Frequently Asked Questions

How do I determine appropriate Cpt values for my safety functions?

Start with manufacturer documentation for certified equipment. For other components, reference industry databases and apply engineering judgment with conservative assumptions.

Does full stroke valve testing guarantee 100% coverage?

No. Even comprehensive testing may miss certain failure modes like internal leakage or partial sticking during operation.

What distinguishes Cpt from diagnostic coverage?

Proof test coverage measures manual testing effectiveness, while diagnostic coverage assesses automated self-checking capabilities within devices.

Which provides better improvement: increased test frequency or enhanced coverage?

Improving coverage typically delivers greater safety benefits with less operational disruption than increasing test frequency.

How can we improve Cpt without system modifications?

Enhance testing procedures by adding complementary methods like leak detection, position verification, or combining automated and manual testing routines.
